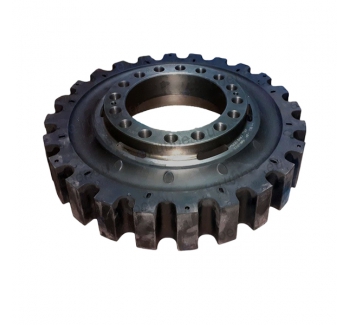

Product Introduction: VULKAN VULASTIK-L X3412 Coupling
The VULKAN VULASTIK-L X3412 coupling is engineered to provide exceptional flexibility and superior performance in a wide range of industrial applications. Designed to handle complex drive systems, this coupling ensures high torque transmission, effective vibration damping, and the ability to compensate for misalignments. It is particularly suitable for systems subjected to high dynamic loads and is widely used in critical machinery such as compressors, blowers, pumps, and other equipment requiring smooth and reliable operation.
The advanced elastomeric elements used in the X3412 coupling provide excellent shock absorption, reducing mechanical stress and ensuring optimal performance over extended periods. Its superior damping characteristics protect connected machinery from the adverse effects of vibrations, extending the lifespan of the system and improving its operational efficiency.
Key Features:
Vibration Damping: Offers superior vibration isolation to minimize operational noise and protect sensitive equipment.
High Flexibility: Capable of accommodating axial, radial, and angular misalignments, ensuring smooth torque transmission in complex systems.
Durability: Built from high-quality elastomeric materials, the X3412 coupling provides long-lasting performance in demanding environments.
Temperature Resistance: Designed to operate in a broad temperature range, ensuring reliability under various environmental conditions.
Technical Parameters:
Nominal Torque (TKN): 10.00 – 16.00 kNm
Maximum Torque (TKmax): 21.00 kNm
Speed Range (n): 2500 RPM
Temperature Range: -30°C to +80°C
Misalignment Capacity:
Axial Misalignment (ΔKa): 1.0 mm
Radial Misalignment (ΔKr): 0.5 mm
Angular Misalignment (ΔKw): 3.2°
Radial Reaction Force (Frad): 67.0 kN
Axial Reaction Force (Fax): 4.0 kN
Dynamic Torsional Stiffness (CTdyn): 1.20 kNm/rad
Element Stiffness: 1.0 kNm/rad
Applications:
The VULKAN VULASTIK-L X3412 coupling is ideal for various industrial sectors, including:
Compressors and Pumps: Ensures smooth operation by absorbing vibrations and accommodating system misalignments.
Fans and Blowers: Provides reliable torque transmission in high-speed environments while minimizing mechanical wear.
Material Handling Equipment: Perfect for applications like belt conveyors and other dynamic systems requiring high flexibility and torque handling.
Conclusion:
The VULKAN VULASTIK-L X3412 coupling is a robust, high-performance solution that excels in demanding industrial environments. Its excellent vibration-damping properties, combined with flexibility and durability, make it the ideal choice for applications requiring reliable, long-term performance.
