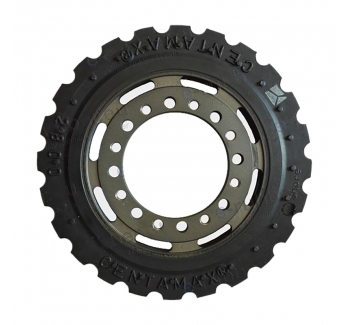

CENTAMAX2800 coupling CENTAMAX2800 rubber coupling CENTAMAX2800 elastic coupling CENTAMAX2800 coupling damping pad

Robust coupling with high torsional flexibility. For resonance-freeoperation of drives susceptible to torsional vibration.
Iorque transmission via a toothed outer ring onto a rubber element.highly reliable and rupture-proof design for the transmission of hightorques in a compact design.
Characterised by high torsional flexibility with linear characteristic.Dampens torsional vibrations and shocks and compensates axial, radialand angular misalignments. Effectively ventilated and with highallowable energy loss. In silicon design, additionally oil resistant andsuitable for higher temperatures.
Blind assembly for minimum axial mounting effort. With flywheel con.
FeaturesEffective ventilationBlind assemblyTemperature resistantFlexible torsional elasticity
Areas of Application4
torque range0.7 to 15 kNmNR/SI/CENTALAN HTelastic materialtemperature rangeNR -45°to +80°CSi-45° to +120°CCENTALAN HT-25° to +100°C,short term +120°C
nections acc.to SAE. Also available for non-standard flywheels.
