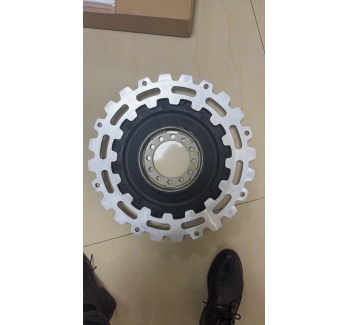

Product Introduction: VULKAN VULASTIK-L 1910 Coupling
The VULKAN VULASTIK-L X1910 coupling is designed for high-performance applications where vibration damping, torque transmission, and misalignment accommodation are critical. This coupling is an essential solution for industrial machinery that demands reliable and efficient torque transfer, reducing the impact of torsional vibrations and protecting connected equipment from excessive stresses.
Designed with flexibility in mind, the X1910 model can handle various forms of misalignment (axial, radial, and angular), making it suitable for a wide range of dynamic applications, including pumps, compressors, conveyors, and many other industrial systems.
Key Features:
Superior Vibration Damping: Effectively absorbs torsional vibrations, ensuring smooth and quiet operation, even in high-speed or high-torque applications.
High Flexibility: Accommodates axial, radial, and angular misalignments, allowing for easy integration into complex mechanical systems without compromising performance.
Durability: Constructed with high-quality rubber elements, the 1910 coupling offers exceptional durability under challenging operating conditions.
Temperature Resistance: With a wide operational temperature range, it ensures reliability in both high and low temperature environments.
Technical Parameters:
Nominal Torque (TKN): 1.25 kNm
Maximum Torque (TKmax): 2.00 kNm
Vibration Torque (TKW): 0.40 kNm
Power Loss (PKV50): 0.16 kW
Rotational Speed (n): Up to 3600 RPM
Temperature Range: -30°C to +80°C
Misalignment Capacity:
Axial Misalignment (ΔKa): 1.0 mm
Radial Misalignment (ΔKr): 0.5 mm
Angular Misalignment (ΔKw): 2.0°
Radial Reaction Force (Frad): 4.5 kN
Axial Reaction Force (Fax): 1.0 kN
Dynamic Torsional Stiffness (CTdyn): 1.0 kNm/rad
Relative Damping (ψ): 1.00
Applications:
The VULKAN VULASTIK-L 1910 coupling is ideal for industries requiring robust and reliable torque transmission with excellent vibration damping. Some key applications include:
Compressors and Pumps: Providing smooth and stable operation by minimizing vibrations and compensating for shaft misalignment.
Fans and Blowers: Ideal for high-speed machinery, reducing wear and improving efficiency.
Material Handling: Perfect for use in belt conveyors and similar equipment that requires consistent torque transmission under varying load conditions.
Conclusion:
The VULKAN VULASTIK-L 1910 coupling offers a superior combination of flexibility, durability, and vibration damping, making it an excellent choice for demanding industrial applications. Whether used in high-speed, high-torque environments or in systems with significant misalignment, the X1910 model provides the reliability and performance needed to ensure long-lasting, efficient operation.
